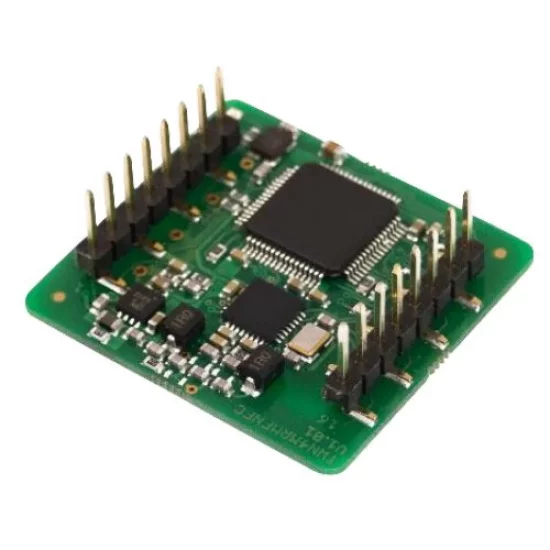

Elatec TWN4 Multi-Tech HF Mini Reader, 5V TTL | T4MR-F

About the Elatec TWN4 MultiTech HF Mini Reader, 5V TTL - Standard.

• TWN4 Mini Reader
• 33x30mm
• 3.15-5.5V
• With Integrated antenna
• Serial TTL or SPI

Type:  TWN4

Style:  Mini

Connection:  Serial

Option: Standard

Standards: ISO14443A, ISO14443B, ISO15693, NFC

This Elatec RFID reader will read the following frequencies: 125kHz, 13.56MHz

This Elatec RFID reader will read the following 13.56Mhz technologies: HID iCLASS Seos/Seos Elite, MIFARE® Classic, MIFARE® Classic EV1, MIFARE® Mini, MIFARE® DESFire EV1, MIFARE® DESFire EV2, MIFARE® Plus S, X, MIFARE® Pro X, MIFARE® Smart MX, MIFARE® Ultralight, MIFARE® Ultralight C, MIFARE® Ultralight EV1, NTAG2xx, PayPass, SLE44R35, SLE66Rxx (my-d move), Topaz, Calypso, Calypso Innovatron protocol, CEPAS, CTS, Moneo, Pico Pass, SRI4K, SRIX4K, SRI512, SRT512, NFC Forum Tag Type 1-5, Sony FeliCa, EM4x33, EM4x35, HID iCLASS, HID iCLASS SE/SR/Elite, ICODE SLI, LEGIC Advant, M24LR16/64, Pico Pass, SRF55Vxx (my-d vicinity), Tag-it,

This Elatec RFID reader will read the following 125KhZ technologies: AWID, Cardax, CASI-RUSCO, Deister, EM4100/4102/4200, EM4050/4150/4450/4550, EM4305, FDX-B/EM4105, HITAG 1/2/S, ICT, IDTECK, ISONAS, Keri, Miro, Nedap, PAC, Paxton Net 2, Pyramid, Q5, T5557/T5567/T5577, TIRIS/HDX, TITAN (EM4050), UNIQUE, ZODIAC.

Elatec offers an extensive range of products which are almost assured to meet your requirements with LF/HF card technologies. Being able to read over 60 different card technologies enables the TWN4 range of products to be flexible yet robust as a product.

Applications for these readers include Parking; EV Chargers; Ticket POS; Vending; PC Login, Mobility; Fitness Equipment; Driver ID; Access Control; Elevators; Library book management; Time & Attendance; Document Management; Health Care; Gaming; Locker lock – the only real limit is your imagination!

The TWN4 range of readers has a huge amount of configurability, enabling you to read over 60 different technologies concurrently and to adjust the output by utilising the Appblaster software – this gives you complete control over what cards you wish to read and how the output is configured.

Special Features:

• Powerful SDK for writing Apps which are executed directly on the reader
• Infield Upgradeable
• Direct chip-commands support
• Power down mode for the lowest power consumption
• Two onboard SAM sockets (Secure Access Module)
• CCID and PC/SC 2.01
• Additional interfaces for OEM PCB version
• I²C, SPI, Clock/Data, Wiegand, CAN
• Dedicated expansion bus for connection of LCD, mass storage, etc.
• 8 GPIOs
• Worldwide certifications:
• WEEE, RoHS, R&TTE, CE (Europe), FCC (USA), IC (Canada), ACA (Australia / New Zealand), VCCI (Japan), KCC (Korea), ANATEL (Brazil), CFT (Mexico)
